| Station Setup |
| 2300-RO4 |
Station Summary

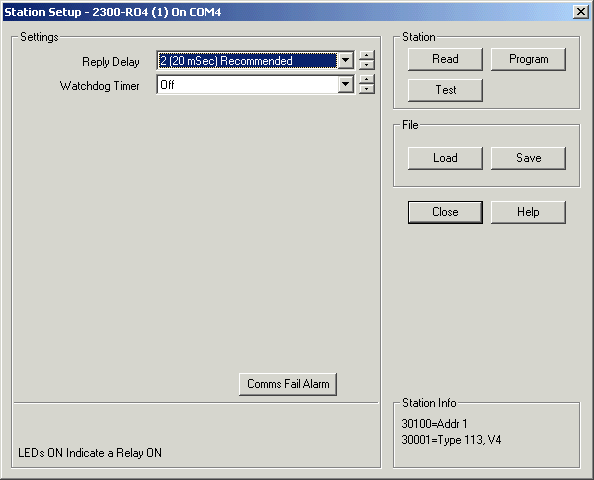

Station Programming dialog
After changes are made, click "Program" to write changes to station.
Settings Table
| Reply Delay | 0 to 990 mSec (20 mSec recommended) |
| Watchdog Timer | Off to 255 Seconds The relays will turn OFF if no comms commands are received after this time limit expires. If set to Off, watchdog function does not operate. |
Comms Fail Alarm
For more information, see 2300 Comms Fail Alarm
DIP Switch Settings
| Switch 1-7 | Address (See Address Table) |
| Switch 8 | No Action, Leave OFF |
| Switch 9 | No Action, Leave OFF |
| Switch 10 | No Action, Leave OFF |
LED Indications
| 1,2,3,4 OUTPUT LED OFF | Output OFF |
| 1,2,3,4 OUTPUT LED ON | Output ON |
| P | Flashing - Station is Powered up and working |
| R | Flashes to indicate good modbus message arrived for this station |
| T | Flashes to indicate reply message has been sent from this station |
Station Info (Read from station)
| 30100 | Dip Switch settings |
| 30001 | Station Type and Software Version (Type = 113) |

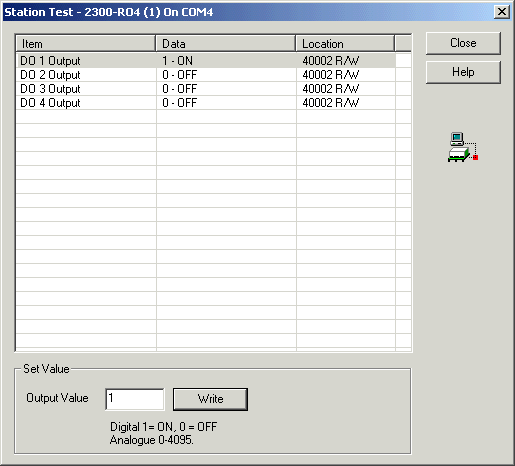

Station Test Dialog:
Station Map Display
