When setting up an XPORT for either 2100-A16-NET or 2100-A16 use, the "Enable Packing" setting must be set to True for normal operations. If it is set to false, the attached serial device on a 2100-NET or 2100-A16-NET will not respond properly.

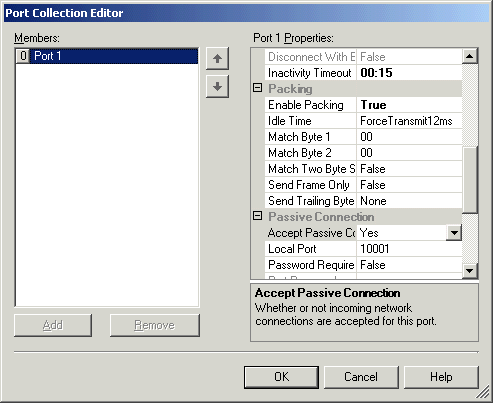

Correct Settings for XPORT Installer Port Settings

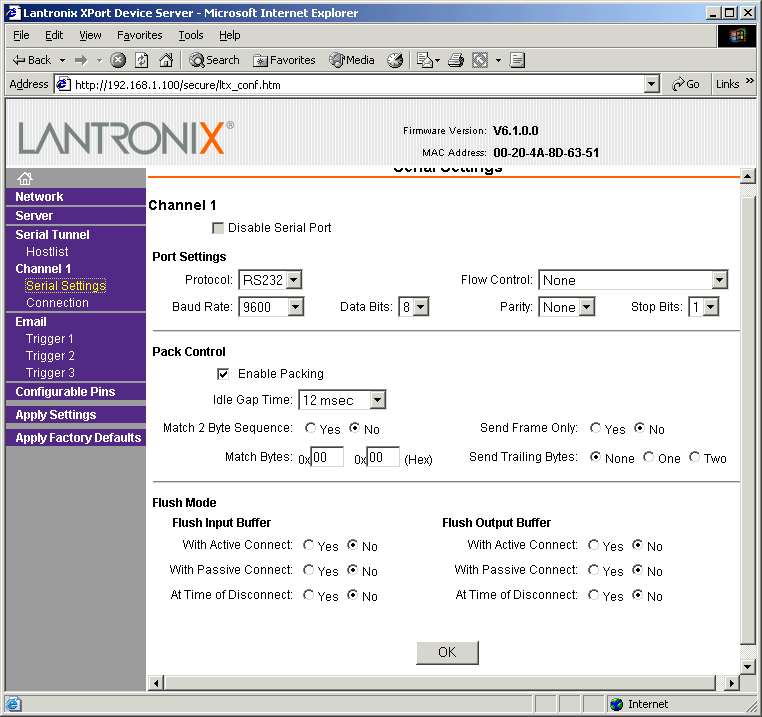

Correct Settings for Web Interface Setting

Note: This is factory set when the A16 is calibrated. Do Not confuse with "Apply Factory Defaults" in the Web Interface - this refers to Factory set as manufactured by Lantronix and is NOT the correct setting for A16 products as it will turn off the Enable Packing setting.

For Further Info, See Also

• 2100-A16-NET via XPORT Installer
• 2100-A16-NET via Web Interface
