Mimic Setup
Button Object

A Button Object is used to write output values to a tag such as setting the value of a Set Value or turning a bit on a PLC on or OFF.

Examples of Button Objects:

Examples of Button Output dialog boxes:

Analogue Output
Analogue Output with Limit Check


Digital Output On

Digital Output Off

MultiSelect Output

List Selector Output

Analogue Output & Spin Button

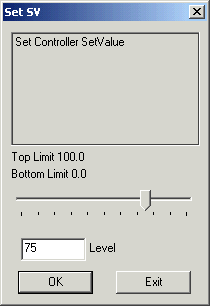

Analogue Output & Trackbar
