| Mimic Setup |
| Utility Button Setup - Set Tag Calibration Value |
The Set Tag Calibration Value allows the user to calibrate the value of a tag.

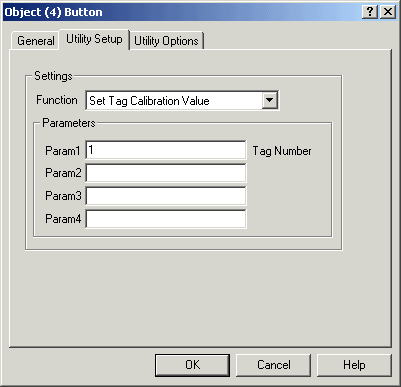

Parameter Settings
Param Settings
| Param | Range | Example |
| Param1 Tag Number | 1 to 5000 | 1 to Set Tag Calibration value for tag 1. |
Action when button is pressed
The following dialog is displayed.
Calibration changes are saved to the Audit log, tracked by the value saved by the mimic page and button used to enter the data.
It is recommended to protect this button with access levels, See Password Setup for a Button
Additional Settings
Use the Utility Options tag to set the Decimal Point position.
Display Tag Calibration Value
To display tag calibration value:

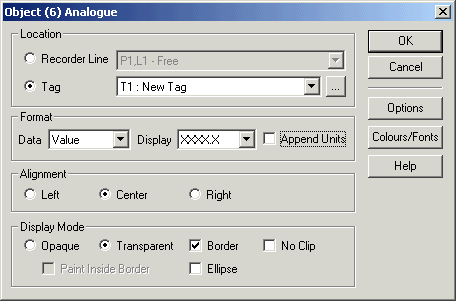

1. Create an analogue object and set its location to the tag required, and also set the display to the number of decimal points needed.

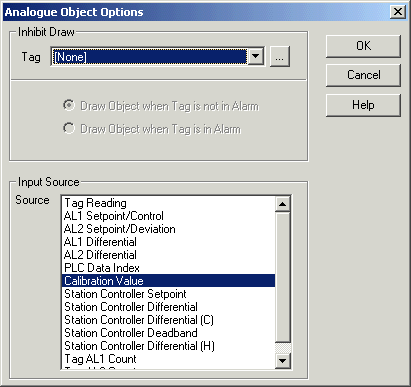

2. Click Options and set the Input Source to Calibration Value.
