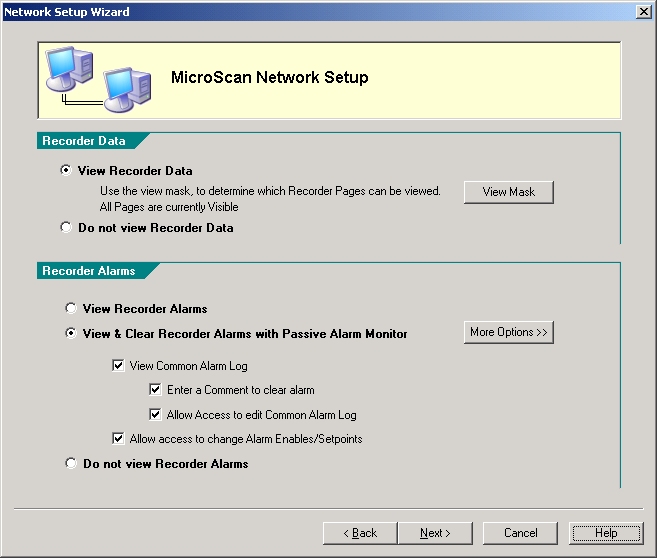

The Data and Alarm Page is used to set how the Passive will show Recorder Data and Alarms.

Recorder Data

Select from:

• View Recorder Data

  To Configure the View Mask and Passive Clear Alarms Option

  Click "View Mask" to make the settings.

• Do not view Recorder Data

Recorder Alarms

Select from:

• View Recorder Alarms

  View the Alarms in the Alarm Status window as shown in the Active Recorder.


• View & Clear Recorder Alarms with Passive Alarm Monitor

  View and clear alarms with the Passive Alarm Monitor.
  Click More Options >> for further settings.

  You can use the View Mask on each passive to section off passive pages, so that only alarms from these pages can be seen and cleared.

• Do not view Recorder Alarms


Next Page

    Finish

Notes

View Mask is not available if  "User Defined Composite Passive" is selected as its function is irrelevant, as the pages to be shown are manually added or removed using the next step of the wizard.
Do not view Recorder Data and Do not view Recorder Alarms cannot be selected at the same time.
