| Alarm Trace |
The Recorder Alarm Trace dialog shows a 1000 item trace of alarm behaviour in the recorder.
To display the Alarm Trace:

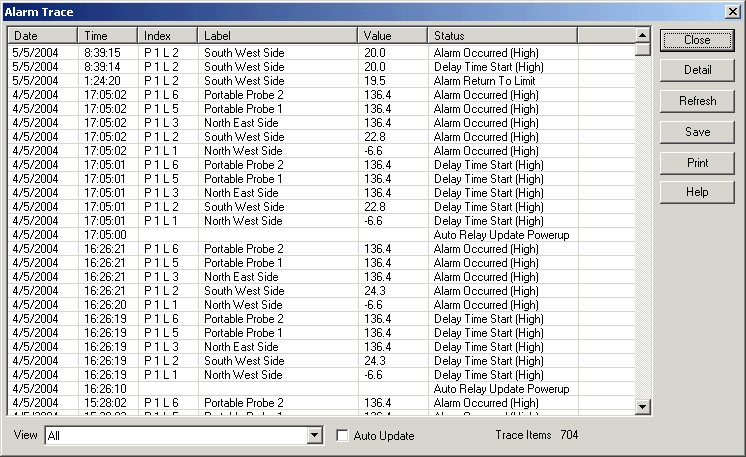

The following window is displayed.
The Alarm Trace window can display alarm messages for a selected line.
Select the line from "View". A line with entries in the trace log will
show "- Found" next to its name in this list.
Click "Auto Update" to make the contents refresh when a new alarm
trace message occurs.
Click Detail to display the Alarm Detail Dialog box.
Alarm Trace Messages
| Auto Relay Update Powerup | The MicroScan software has started, and the alarm relays have been auto updated. |
| Alarm Occurred (High) | A High alarm has occurred. The delay time on a line has expired and the alarm has been flagged. |
| Alarm Occurred (Low) | A Low alarm has occurred. The delay time on a line has expired and the alarm has been flagged. |
| Delay Time Start (High) | A High alarm condition has been detected, and the delay timer has started. |
| Delay Time Start (Low) | A Low alarm condition has been detected, and the delay timer has started. |
| Alarm Return To Limit | The lines value has returned to inside the alarm limits. |
| Delay Time Stop | The alarm is currently counting, it is no longer counting as it is within limits. |
| Alarm Occurred | A Digital Alarm has occurred. |
| Alarm Return to Limit | The alarm has previously occurred, it is now within limits. |
| Alarm Disabled | The alarm on this line has been disabled. |
| Alarm Schedule Off | The alarm has just entered a Schedule Off time period. It will not be monitored. |
| Alarm Schedule On | The alarm has just entered a Schedule On time period. It will be monitored. |
| Batch Stop Alarm | The alarm is not monitored, as the batch is not currently running. |
| Alarm Inhibit On High | A link line has just inhibited the alarm on this alarm. It will not be monitored. |
| Alarm Inhibit On Low | A link line has just inhibited the alarm on this alarm. It will not be monitored. |
| Alarm Inhibit Off High | A link line has un inhibited the alarm on this alarm. It will be monitored. |
| Alarm Inhibit Off Low | A link line has un inhibited the alarm on this alarm. It will be monitored. |
| Clear Alarm | A User has cleared the alarm |
| Clear All Alarms | A User has cleared all alarms. |
| Relay X ON | Relay X has been turned on by an alarm. |
| Relay X OFF | Relay X has been turned off by an alarm. |
| Auto Reset | The lines alarm has been reset by Reset On Hour Event. |
This window is new to Version 5.
