The comms alarm settings determines what will happen when a station comms fails.

To setup,

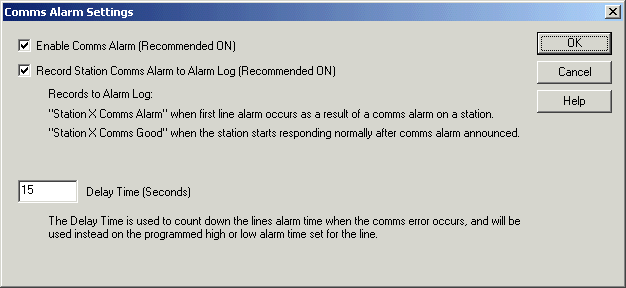

• Click the Comms Alarm button on the Recorders Alarm Settings dialog box
  accessed from Setup Tools, Recorder Details, or Alarm Menu, Alarm Settings.

These settings act as a global override to each lines "Comms Alarms" settings setup in Line Setup, Alarm Settings category.

Enable Comms Alarms - enable if alarms are to be active when the interface reports errors with a station.
Record Station Comms Alarms to Alarm Log - record Comms alarm messages to Log Home, Alarm Log.
Delay Time allows the alarm time to be set when error 1 is found. i.e Normally an alarm is set for 1800 sec high and 300 sec low.
However if a comms alarm is found, this will become 15 seconds.

Setup of Comms Alarms in each line

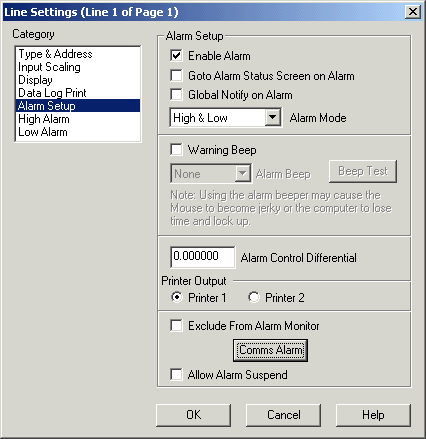

On the Lines Setup, Alarm Setup category, Enable Alarm on.

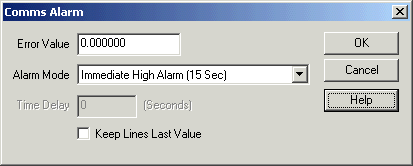

Click Comms Alarms

For More information, see Line Setup: Alarm Setup - Comms Alarm.
