Configure Pages and Lines is used to setup Pages and Lines within the Recorder.

You access this window, by

• Click Configure Pages and Lines on the Setup Tools screen.
• Click Configure Pages and Lines on the Recorders Tools Menu.

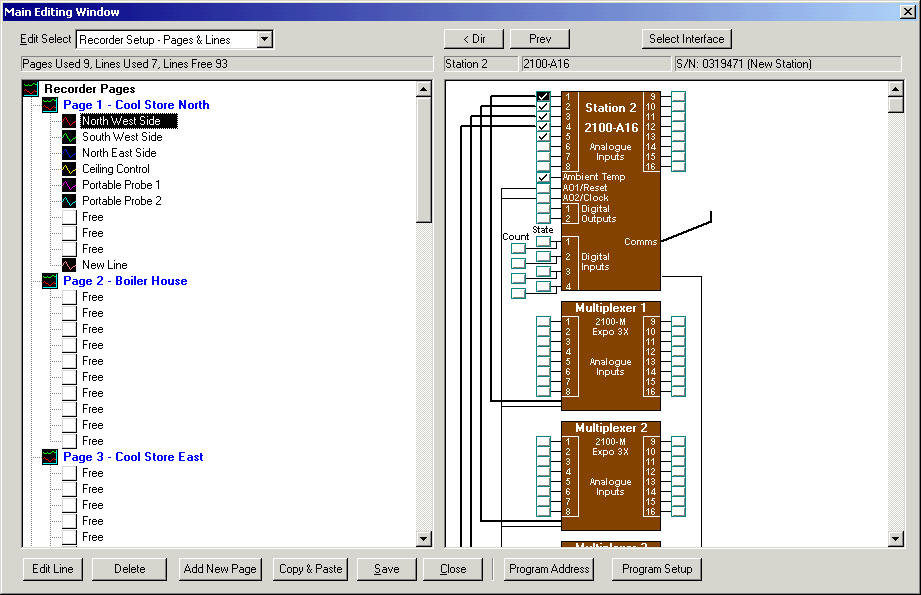

The tree on the left shows the setup of the Pages and Lines.
Each Page that has been used is shown with the 10 lines in the page. If the lines have been used, they are shown with an analogue or digital graphic showing the colour of the line and the lines labels. Lines that have not yet been used are indicated by "Free".

To do in the window..

• Create a new page
  Click Add New Page
• Edit a Page
  Select the Page in the Tree and click the Edit Page button.
• Delete a Page
  Select the Page in the Tree and click the Delete button

• Create a New Line
• Edit a Line
• Delete a line

The Station Map on the right shows the stations used, and what locations have been attached to lines in the Recorder.
The Station Map and Page and Line display are tied together. A stations location that is used is shown by a tick. Click on the tick and the attached line will be highlighted. Click on a line and the stations location will be highlighted.
You can drag and drop station locations on to lines.

See Station Map Features.
