You use Find Stations to locate MicroScan or Shimaden Stations/controllers on the data highway.

To access Find Stations, click the Find Stations button on the MicroScan Interface Settings window.

This tool operates independently from any MicroScan settings and gives a convenient way of determining if the stations are working correctly without requiring or using any other setups.

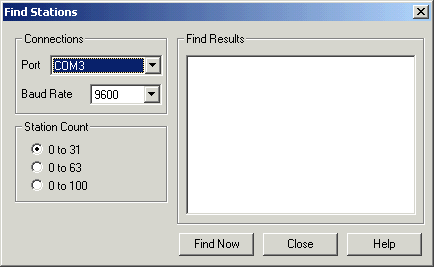

Select the Port and Baud rate required and click Find Now.

Progress will be shown on the dialog, and as each station is found, it will be shown in Find Results.
When the operation is complete a message will be shown saying how many stations have responded.

Click Close to close the window. You can close the window at any time, after the stations you have installed have responded.

No Stations Found

If stations are not found, "No Stations Found will be reported" as shown below

Click OK, Find Stations shows

Port cannot be opened

If the Port cannot be opened

will be displayed.

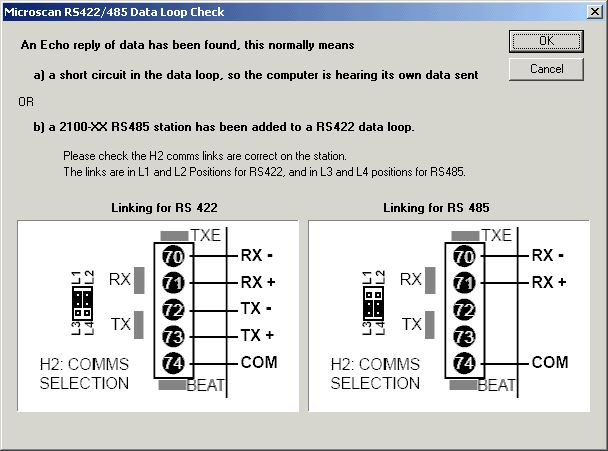

Short on data loop or RS485 linked station added to RS422 data loop

If Find Stations finds an exact reply in rx from the tx data sent, it will report a short or 422/485 linking issue with the following dialog

Find Stations shows

Port Changed

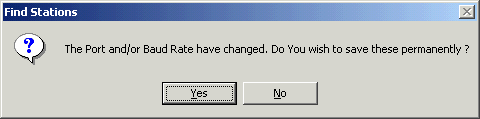

If the port is changed, you will be asked if you wish to update settings to the new port.

Click Yes to update the settings.
