2100-AO Programming screens

NOTE: 2100-AO is supplied only with the mA or V ranges as ordered.
Choose only these ranges when assigning input and output ranges.

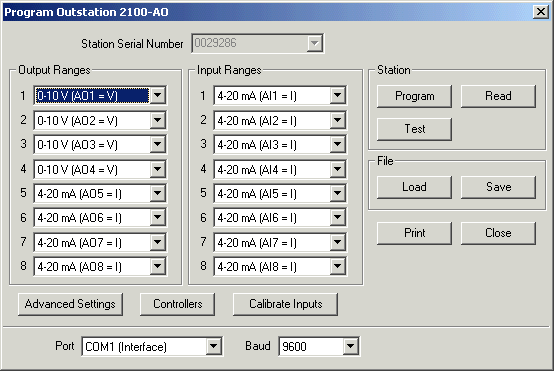

When the window is first displayed, the software will auto read the current settings from the station

Select input and output ranges. Click Program to write changes to station.
Set the Input and Output links on the station to match those ranges chosen.

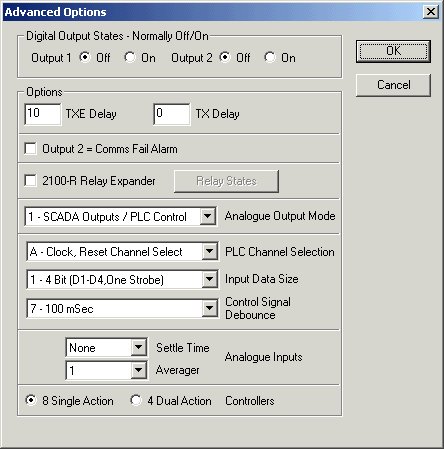

Advanced Settings

Click Advanced Settings button

Click OK. Click Program to write changes to station.
Note 2100-R Relay Expander is not supported on 2100-AO.

Controllers

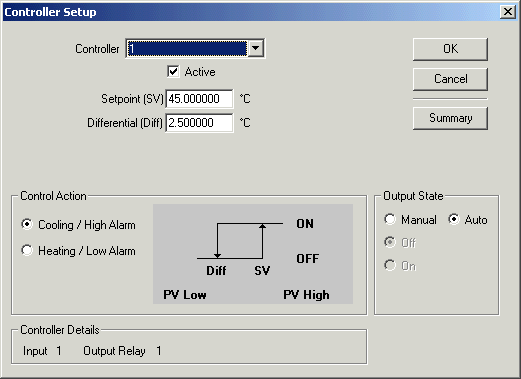

To setup onboard station controllers, click Controllers button.

Select an input, and click Active to enable the controller.
Enter the setpoint and differential as required.
Click OK. Click Program to write changes to station.

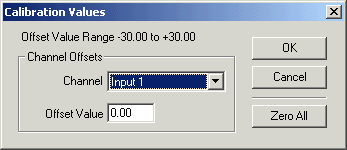

Calibrate Inputs

Click Calibrate Inputs button

Select the channel and enter the offset. Click OK. Click Program to write changes to station.
Note: This value is retained in the station, and is NOT audit tracked using the software, See Calibrate Lines for online calibration and audit tracking of line values.
