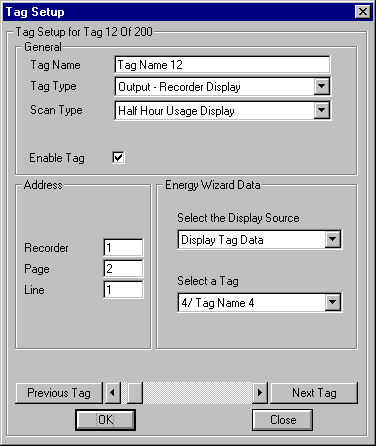

Start the Energy Wizard Set-up program, click on the large button 'Tag Setup'. When the 'Tag Setup' form appears select the tag type 'Output - Recorder Display'. The following will be displayed.

The 'Half Hour Usage Display' scan type is provided so that the actual integrated value of energy usage for a particular Cost Center or Energy Wizard Tag can be displayed on the MicroScan2000 Recorder. This will produce a saw-tooth type of graph which will reset to zero at the start of every period and will steadily increase during the period.

This output to the Recorder is of great interest as it provides an up-to-the-minute graphical display of the energy consumption trend.

• Tag Name: - Enter the name you wish to call the Tag into the text box.
• Tag Type: - Select the Tag Type from the combo box. For this set-up select 'Output - Recorder Display'.
• Enable Tag: - Check the check box to enable this Tag.
• Recorder: - Enter the Recorder Number of the Line from where you wish to send the data. This should be a number from 1 to 5.
• Page: - Enter the Page Number of the Line from where you wish to send the data. This should be a number from 1 to 10.
• Line: - Enter the Line Number from where you wish to send the data. This should be a number from 1 to 10.
• Select the Display Source: - Select the display source you require, that is do you wish to send the half houly usage of a Cost Center or an Energy Wizard Tag.
• Select a Tag/Select a Center: - Select the Energy Wizard Tag or Cost Center as required.
