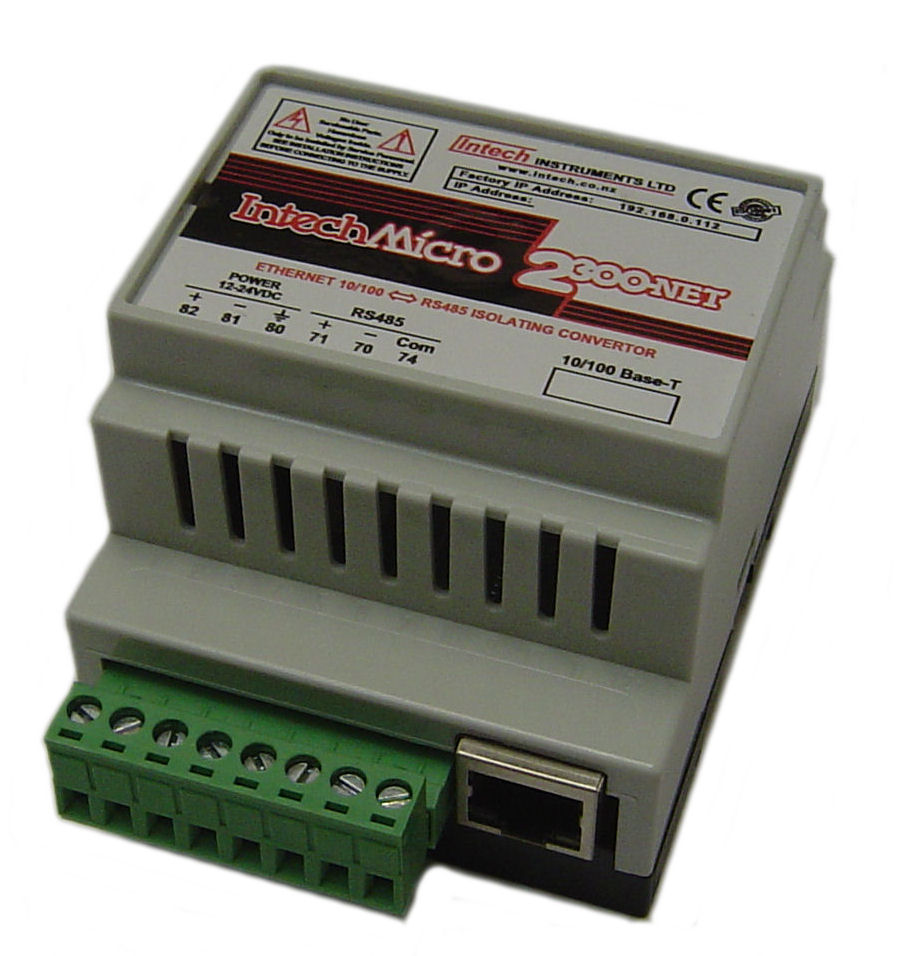

The 2300-NET is an Ethernet to Modbus RTU converter that can be used to connect 2300-XX stations to the ethernet.

NOTE: To add 2300-NET stations, the Ethernet Mode must be turned on in MicroScan, either in Select Module Wizard or by using Setup Tools, MicroScan Interface settings to enable Ethernet Mode. When  enabled, the Configure 2300-NET link will be visible in Remote Stations on the Setup Tools screen. See Enable 2300 Support.

The 2300-NET is factory assigned to 192.168.0.112. To change this address, you must open 192.168.0.XXX on your network and use a web browser to change the settings of the 2300-NET to a valid address on your network. For more Info, see 2300-NET

2100-NET to 2300-XX connections (See 2300-XX Manual for complete wiring diagram)

NOTE: A Terminating Resistor of 1k MUST always be used with 2300-NET and 2300-XX stations (put at the end station of a 485 data loop).
