The Analogue object Setup is used to set properties for an analogue object

To access :

• Double click on the object on the screen
• Click on the object and click on the Object Properties button on the Mimic Edit Tool bar.
• Select the object from the Object List window and click Setup.

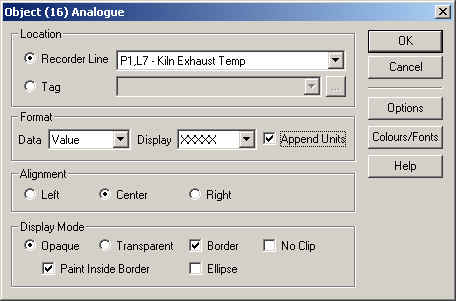

The following dialog appears:

To set the object Location, see Object Location.
To set the object Format, see Object Format
To set the object Alignment, see Object Alignment
To set the object display details, see Object Display Mode.

To set Analogue Options, click Options.

To set the objects Colour and Font, click Colours/Fonts
