| Alarm Relay Summary |

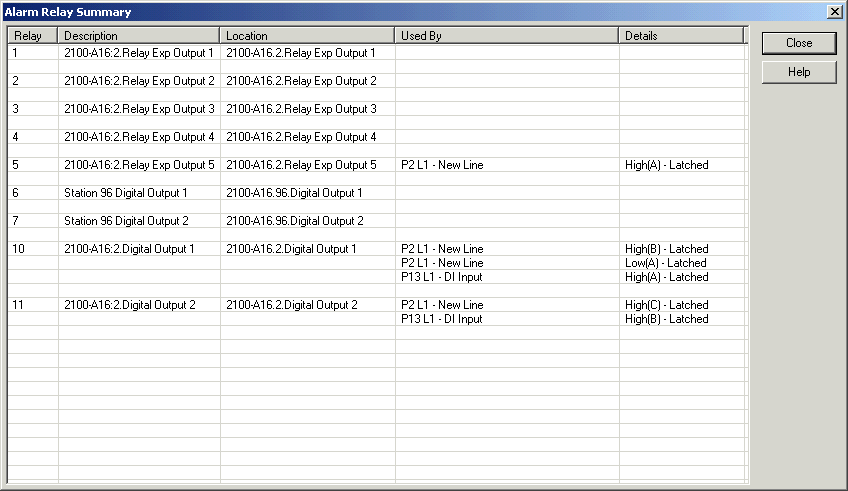

The Recorder Relay Setup Summary dialog shows current alarm relays for the
lines in the Recorder.
To display the Summary:
- Click on Alarm Relay Summary on the Recorders Alarm
Menu
The window shows:
- The relay number, its description and location.
- The lines that have been attached to this relay
- The relay (A,B,C,D) and type of alarm being used (Latched or Unlatched) by
the line.
