| Recorder User Help |
| Alarm Setup Summary |

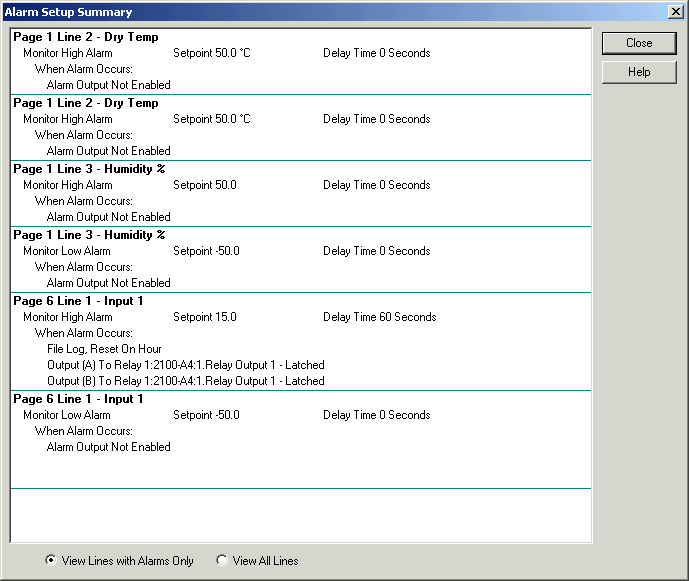

The Recorder Alarm Setup Summary dialog shows current alarm settings for the lines in the Recorder.
To display the Setup Summary:
This shows the lines alarm details, setpoint, delay and what happens when the alarm occurs.
A line can be listed twice or once here according to the alarm mode that the
line is in.
See Line Setup, Alarm Setup,
Alarm Mode.
Alarm Mode
| High & Low | Line Shown with High Alarm and Line Shown with Low Alarm |
| High & High | Line Shown with High Alarm and Line Shown with High Alarm |
| Low & Low | Line Shown with Low Alarm and Line Shown with Low Alarm |
| High Only | Line Shown with High Alarm Only |
| Low Only | Line Shown with Low Alarm Only |
