Configure Alarm Relays is used to setup Alarm Relays within the Recorder.

Note: Station Relays are automatically added to Alarm Relays when the Add Station Wizard is used to add a station, as in the following step

so editing Alarm Relays with Configure Alarm Relays is not normally required.

You access this window, by

• Click Configure Alarm Relays on the Setup Tools screen.
• Click Configure Alarm Relays on the Recorders Tools Menu.

Create a Relay

• Double click a Free relay and enter required settings
• Drag a relay output from the station map to a Free Relay

Edit a Relay

• Select the relay in the Recorder Relays List, and click Edit Relay
• Double click on the relay in the Recorder Relays List

Delete a Relay

• Select the relay in the Recorder Relays List, and click Delete button
• Select the relay in the Recorder Relays List, and hit the Delete key on keyboard

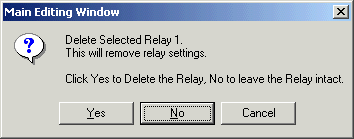

Click Yes to delete the relay.

Relay Setups can be seen in Relay Setup.

Recorder Relay Banks

Normally MicroScan is setup for 1 bank of 32 alarm relays, but it can be setup in a V4 legacy mode to allow 1 bank of 32 relays per ten recorder pages, set in the Alarm Settings, Alarm Relay Mode.

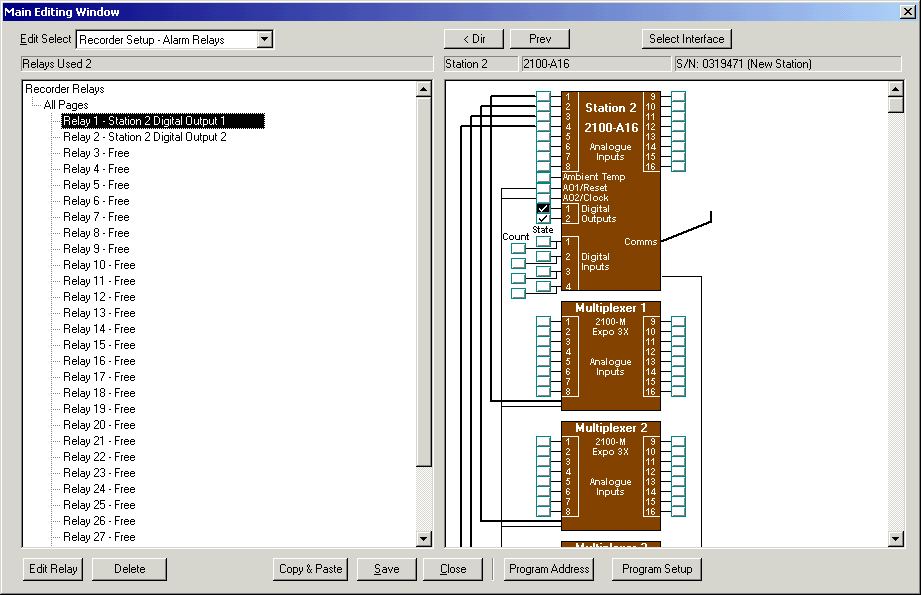

Default Setting

Separate Bank mode

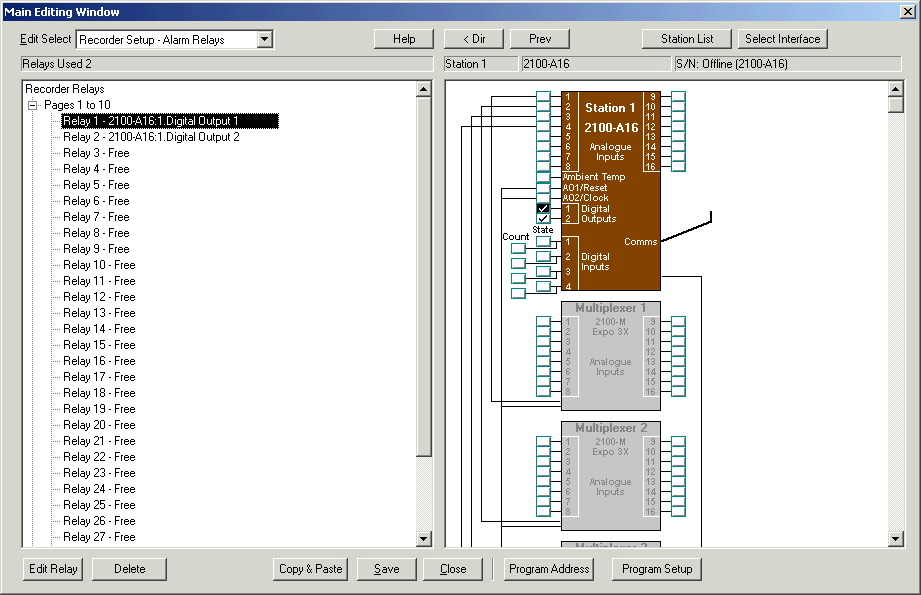

When in the Separate bank mode, the Recorder Relay List shows a separate bank of relays per each set of ten pages as shown below.

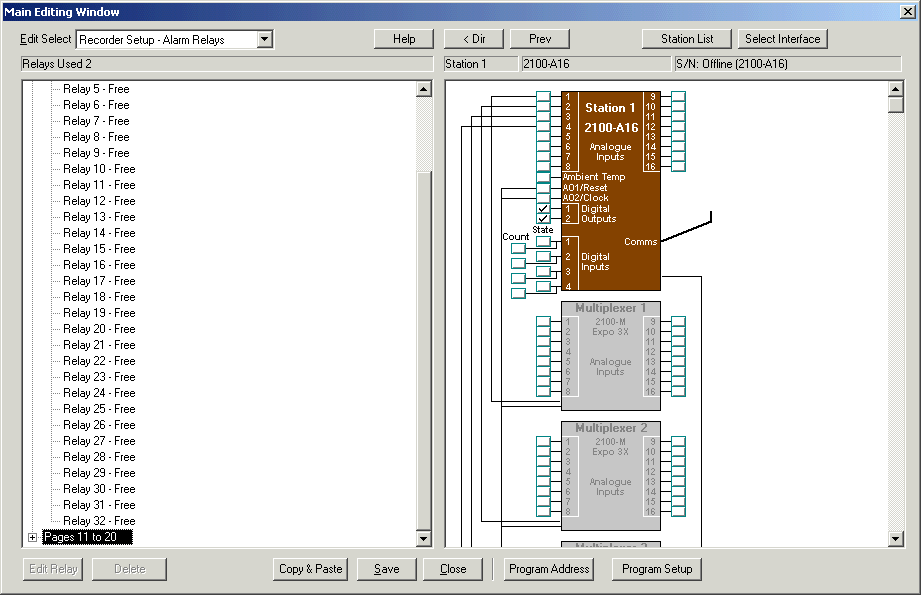

Further page relays are listed toward the button of the relay list

Click the + sign to open the bank of relays for viewing/editing
