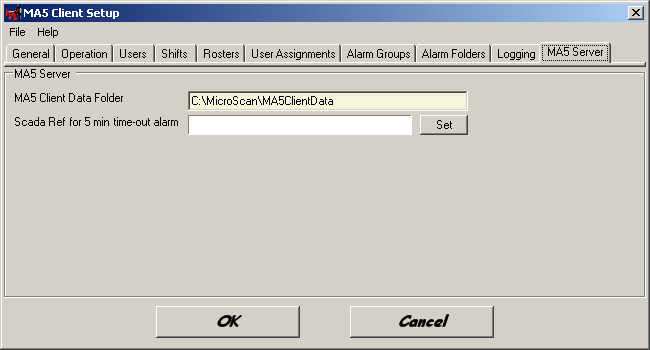

This is the MA5 Client "MA5 Server " setup tab:

The MA5 Server setup has the following properties:

MA5 Client Data Folder Read only. Displays the MA5 Client Data Folder. This must be included in the MA5 Client Folder list.
Scada Ref for 5 min time-out alarm Enter a Microscan Reference for the time-out alarm. If set the value of the reference will be set to 0 if there are no files in the MA5ClientData folder older than 5 minutes. If there are some files older than 5 minutes then it is deemed that the MA5 Server program is no longer servicing this folder and the reference will be set to 1. It would be good if this reference was a alarmed within Microscan and connected to an external alarm or auto dialer.
