| Mimic Setup |
| Utility Button Setup - Global Tag Alarm Settings |
The Global Tag Alarm Settings dialog allows you to review and change the settings of tag alarms in one dialog.

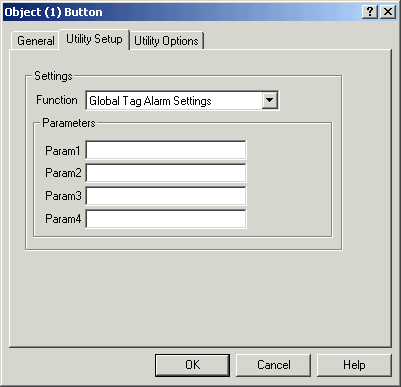

Parameter Settings
Action when button is pressed

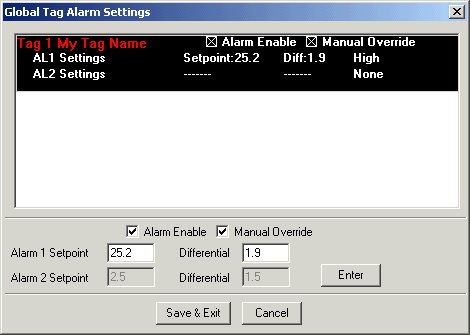

The following dialog is displayed.
Select a tag, make changes to settings and click Enter.
Click Save & Exit to save changes.
Additional Info
You can display the Alarm Settings of tags using analogue and digital objects, for more information see the following links:
Display Alarm
Enable
Display Manual
Override
Display Al1
Setpoint
Display Al1
Differential
Display Al2
Setpoint
Display Al2
Differential
