| Mimic Setup |
| Utility Button Setup - Set Tag All |
The Set Tag All allows the user to set the several alarm settings of a tag using a dialog all at once.

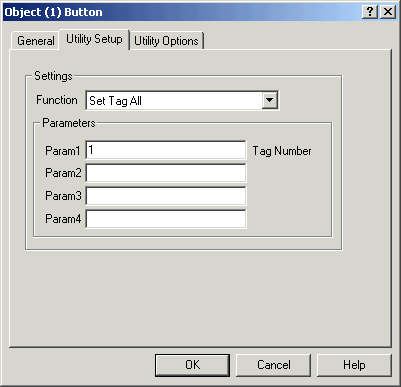

Parameter Settings
Param Settings
| Param | Range | Example |
| Param1 Tag Number | 1 to 5000 | 1 to enter AL2 Differential value for tag 1. |

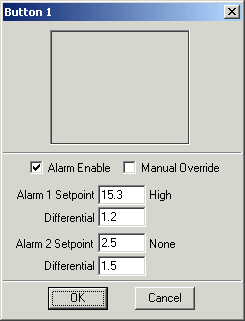

The following dialog is displayed.
Enter the values as required and click OK.
Additional Settings
Use the Utility Options tag to set the Decimal Point position.
Additional Info
You can display the Alarm Settings of tags using analogue and digital objects, for more information see the following links:
Display Alarm
Enable
Display Manual
Override
Display Al1
Setpoint
Display Al1
Differential
Display Al2
Setpoint
Display Al2
Differential
