Recorder Enter Access Code

Recorder User Help

Enter Access Code

You may enter an access code in any of the following ways.

Click the Access button on the Line Button Bar, Data Button Bar, Line Tool Bar or Data Tool Bar.
Click "Enter Access Code" on the Recorders Access Menu.
Press Ctrl + A on the keyboard.
Click "Enter Access Code" on the Recorder Home Page or Setup Tools screen
Double click on the "Access" text on the Recorder Page Title.

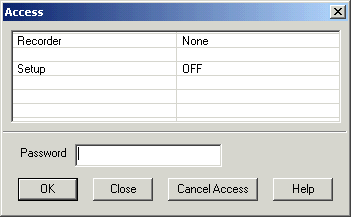

Enter an Access Code:

Enter the password and click OK.
Click Close to leave access levels as they are.
Click Cancel Access to Cancel current access levels.
As you enter the password, a 'X' is shown for each character typed.

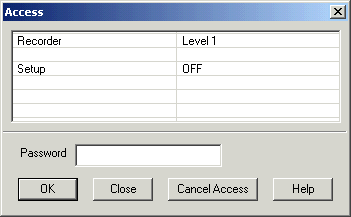

Level 1 Password on.

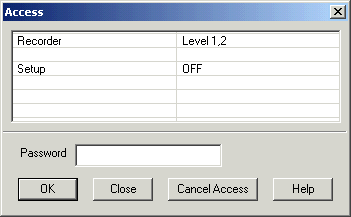

Level 2 Password on.
