The Recorder Details settings is used to set Recorder wide settings.

To access:

• Click "Recorder Details" on the Setup Tools screen.

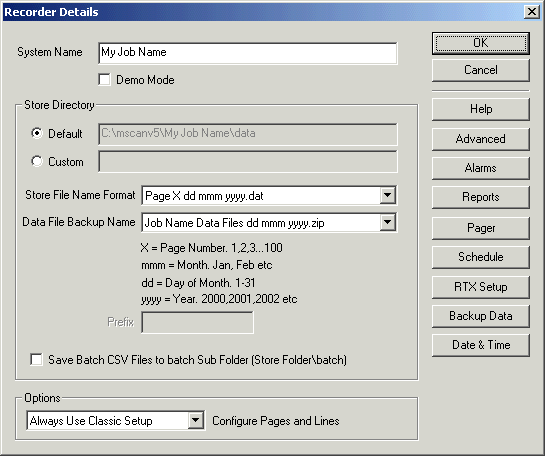

The following dialog is displayed:

This dialog box acts as a central access point to configure recorder settings.

• Click "Advanced" to set Advanced Recorder Options.
• Click Alarms to access Alarm Settings (same as Alarm Settings on Recorders Alarm Menu)
• Click Reports to setup Custom Reports (same as Custom Report Generator on Recorders Tools Menu).
• Click "Pager" to setup Pager Settings (same as Pager Messaging on Tools Menu).
• Click "Schedule" to setup Alarm Schedules (same as Schedule Setup on Alarm Menu).
• Click RTX Setup to setup Recorder Retransmission.
• Click Backup Data to make Backup settings
• Click Date and Time to change recorders date and time formats, see Date & Time.

Configure Pages and Lines

This setting allows you to choose the editing method when Configure Pages and Lines is clicked on the Setup Tools screen.

Select from:

• Select Quick/Classic Setup
• Always Use Quick Setup
• Always Use Classic Setup
