This category is used to scale the input of a digital tag.

Invert

To invert the state of the input, click the Invert Control.

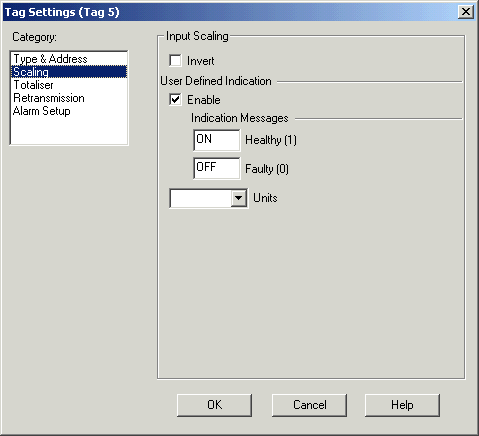

User Defined Indication - Enable

Click enable On to change from healthy and faulty text display to user defined text messages.

User Defined Indication - Healthy, Faulty

This is used to replace the standard "Healthy" and "Faulty" indication with some other text. The Enable check box must be turned on, and the required text typed into the edit boxes. The "Healthy Text" is displayed when the tag's value is non zero, and "Faulty Text" when it is zero. (Note: The alarm state for a digital input can be programmed in the Digital Alarm category).

Units

Enter a text string to appear as the tags units.
