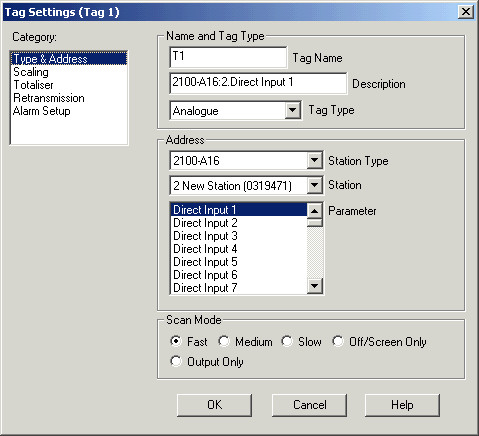

The Tag Setup dialog box is used to change settings for a tag. It is a category dialog box with a list of categories on the left which are used to select the area of the tag setup to be edited. When a new category is selected, the contents of the dialog box on the right hand side will change. When you make changes, press the OK button to keep them. All changes made to the categories you have visited will be kept. Press the Cancel button to abandon any changes made.

The Tag Setup categories change according to the type of tag being edited, as some categories apply to some types and not others.

Press the Help button to display the Help Page that matches the category that is being displayed.

See Also

Type and Address
Scaling
Alarm
Alarm 1
Alarm 2
Totaliser
Retransmission
Digital Scaling
Psuedo Digital Scaling
Digital Alarm
Math Settings
Counter Scaling
