| Recorder User Help |

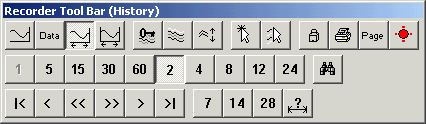

| History Tool Bar |
The History Button "
" is shown
as pressed as above, when the History display is visible.
"History View" is shown in the Page Title bar to show the Line Graph is
in the History Mode. See Recorder
Page
Title.
The History Tool Bar displays tips for each button, as you move the mouse over the
tool bar.
 |
Display Line Graph and switch to Line
Tool Bar. See Recorder Line Display. |
 |
Display Data Screen and switch to Data
Tool Bar. See Recorder Data Display. |
|
Display History and switch to History
Tool Bar. See Recorder History Display. |
 |
Display Batch and switch to Batch
Tool Bar. See Recorder Batch Display. |
 |
Display Line Key. See Recorder Line Key. |
 |
Display Line Details. See Recorder Line Details. |
 |
Display Graph Scale. See Recorder Graph Scale. |
 |
Display Mouse Track. See Recorder Mouse Track. |
|
Display Multi Track. See Recorder Multi Track. |
 |
Display Access. See Enter Access Code. |
 |
Print See Print Current Graph. |
 |
Display Page Popup Menu. See Recorder Page Popup Menu. |
 |
Go to Alarm Status Screen See Recorder Alarm Status. |
 |
Display 1 Minute Graph |
 |
Display 5 Minute Graph |
 |
Display 15 Minute Graph |
 |
Display 30 Minute Graph |
 |
Display 60 Minute Graph |
 |
Display 2 Hour Graph (Currently pressed as 2 Hour graph is shown) |
 |
Display 4 Hour Graph |
 |
Display 8 Hour Graph |
 |
Display 12 Hour Graph |
 |
Display 24 Hour Graph |
 |
Search for a time, or a time and date in the store files. See History Search. |
 |
Move to the beginning of the stored data (oldest data). |
 |
Move data Back, one third the size of the currently displayed interval. |
 |
Move data Back, one interval of the size of the currently displayed data. |
 |
Move data Forward, one interval of the size of the currently displayed data. |
 |
Move data Forward, one third the size of the currently displayed interval. |
 |
Move data to the most recently displayed data. |
 |
Display a user defined history graph 7 days in size. |
 |
Display a user defined history graph 14 days in size. |
 |
Display a user defined history graph 28 days in size. |
 |
Build a
user defined graph. See History User Defined Size. |
